Flood Elevation Surveys Before Building on Low-Lying Land

Posted on July 24, 2026 by Fort Lauderdale Surveyor

A flood elevation survey tells you how high your building needs to sit before you pour a single footing. Skip it and you might design a home that fails permitting. Or one that costs more to insure. Or one that floods in the first bad storm. For developers working low-lying parcels in Fort Lauderdale, this survey isn’t optional paperwork. It’s the number that shapes your entire foundation plan.

What a Flood Elevation Survey Measures

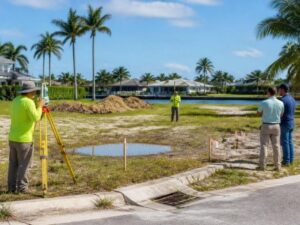

A flood elevation survey checks the exact ground height of a parcel. Then it compares that height to the Base Flood Elevation, or BFE. FEMA sets the BFE for each flood zone. A licensed surveyor uses GPS or level equipment tied to a known benchmark. They record heights at key points across the lot.

This is not the same as a topographic survey. A topo survey maps the shape of the land. A flood elevation survey answers one clear question. How far above or below the flood line does this ground sit?

The surveyor usually records:

Ground height at the building site
Height of the lowest ground next to the building
Height of the nearest road, since it often sets the drainage point
Data points needed later for an elevation certificate

Why Developers Can’t Skip This Step

Fort Lauderdale sits low. Much of the city sits just a few feet above sea level. Large parts of it fall inside FEMA flood hazard zones. A lot that looks fine on a plat map might still need real elevation work once you check the flood zone data.

Local Rules Add Their Own Layer

Broward County and the City of Fort Lauderdale often ask for freeboard. Freeboard means you build above the BFE by a set amount, not just at it. Some zones ask for one extra foot. Others ask for more. These numbers shift based on the flood zone your parcel sits in. A survey done early tells you the real number your foundation needs to hit.

Soil and Drainage Make Guessing Risky

South Florida soil drains fast in some spots. It holds water in others. Add a high water table and a small mistake in site elevation can send stormwater onto a neighbor’s lot instead of away from yours. A flood elevation survey gives your civil engineer real numbers to work with. Not guesses.

Common Flood Zones You’ll See on a Fort Lauderdale Site

FEMA maps break flood risk into zones, and each zone comes with its own building rules.

Zone X. Lower risk. Still worth checking, since heavy rain can still cause local flooding.
Zone AE. Higher risk. Requires a set BFE and often requires freeboard on new builds.
Zone VE. Coastal zone with wave action. Requires elevated foundations and stricter engineering.

Your surveyor will confirm which zone applies to your parcel and what elevation data the local building department wants to see.

When to Order the Survey

Timing matters a lot here. Order the survey too late and you risk redesigning a foundation after the architect has already finished the plans.

Before Site Design Begins

Order the survey right after you close on the land. Do it before your architect or engineer starts drawing. This way, the required floor height gets built into the design from day one. It doesn’t get bolted on later, which almost always costs more.

Before You Submit for Permits

Broward County and Fort Lauderdale permitting offices want flood elevation data as part of your site plan. Projects that show up without it often get sent back with a request for more information. That request can burn weeks you don’t get back.

How the Survey Shapes Your Foundation Choices

Once you know the required elevation, your design team has a few paths forward. Each one comes with tradeoffs.

Fill and Raise the Pad

Adding fill to raise the building pad works on many lots. But it changes drainage patterns. It may also need a separate grading permit. Fill costs add up fast on larger sites, so this option isn’t always the cheapest.

Elevated Foundation Systems

Pilings, piers, or a raised slab lift the structure above the required height. This method doesn’t change the ground around it. It costs more upfront, but it avoids drainage fights with neighboring lots down the road.

Flood Vents and Breakaway Walls

Some areas below the required flood height, like garages or storage rooms, still need to exist. Code often requires flood vents for these spaces. Vents let water pass through during a flood instead of pushing against the walls. Your survey data, combined with local code, tells you if this rule applies to your project.

What a Flood Elevation Survey Typically Costs

Cost depends on lot size, site access, and how many elevation points the surveyor needs to record. Smaller residential lots often cost less than large commercial sites with multiple structures. Getting a quote early, right after closing, gives you a real number to plug into your budget before design work starts.

What Happens If You Build Without One

Building without a flood elevation survey doesn’t just risk a fine. It risks a stop work order in the middle of construction, once the county catches the gap during inspection. Fixing a foundation that’s already poured costs far more than getting the number right before you dig. Flood insurance rates also run higher for buildings sitting below the required elevation. That extra cost follows the property for as long as it stands.

Frequently Asked Questions

What is a flood elevation survey?

It’s a survey that measures a property’s ground height and compares it to FEMA’s Base Flood Elevation. This tells developers the exact height their foundation needs to meet code.

How is this different from an elevation certificate?

A flood elevation survey collects raw height data during the design phase. An elevation certificate is a separate FEMA form, usually completed after construction, to confirm the final built height for insurance purposes.

Do all Fort Lauderdale lots need a flood elevation survey?

Most lots in flood hazard zones need one before permitting. Even lots outside mapped flood zones can benefit from one, since Fort Lauderdale’s low elevation makes drainage problems common across the city.

How much freeboard does Fort Lauderdale require above BFE?

Rules vary by zone and can change as FEMA updates its maps. Check the current Broward County and City of Fort Lauderdale code for your exact parcel before you finish the design.

Can I use an old survey instead of ordering a new one?

Only if the height data still holds up and ties to current benchmarks. Grading changes, fill added by a past owner, or updated flood maps can all make an old survey unreliable for permitting.
